Description

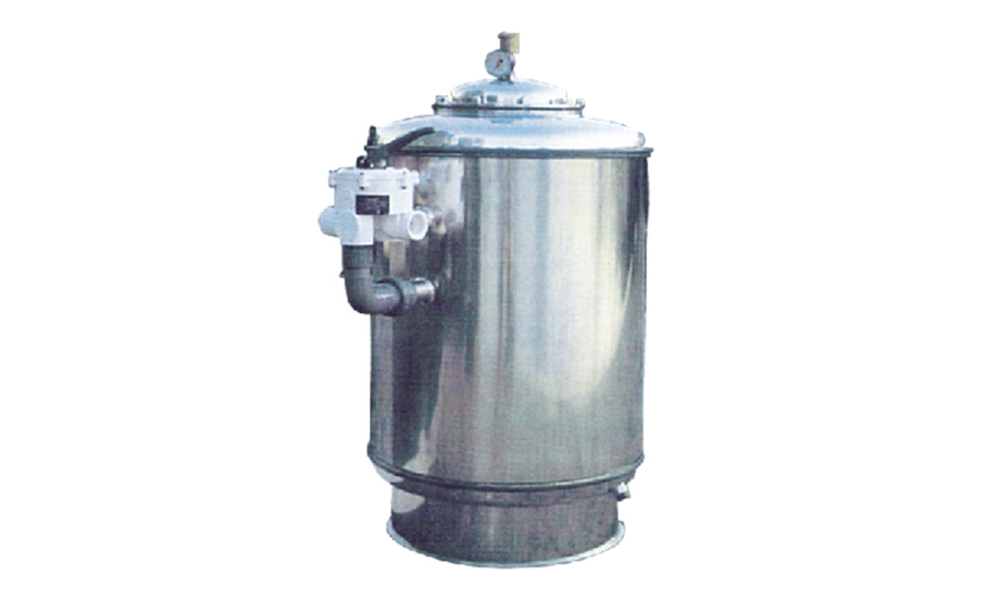

A stainless steel sand filter with optional 6-way multiport side mounted selector for filters up to 950mm

• 6-way multiport valve, side mounted for easy operation and maintenance (Filtration, rinsing, circulation, flush, close and drain)
• Manufactured in stainless steel (AISI 304 V2A or AISI 316 L V4A).
  For 316, add -316 to the code
• Vertical cylinder body with external polished finish
• Internal water distribution (For nozzle plate distribution,
  add ‘-lux’ to the code)
• Manhole diameter: Ø 280 / 400mm
• Maximum operating pressure: 2.5 bar (Test pressure: 4 bar)
• On-demand filter can be supplied with:
  -Working pressure: 4 bar (Test pressure: 6 bar)
  Add ‘-406’ to the code
  -Working pressure: 6 bar (Test pressure: 10 bar)
  Add ‘-0610’ to the code
  -Working pressure: 10 bar (Test pressure: 15 bar)
  Add ‘-1015’ to the code
• Warranty: 5 years on filter body
• Manifold and valves are not included
