Description

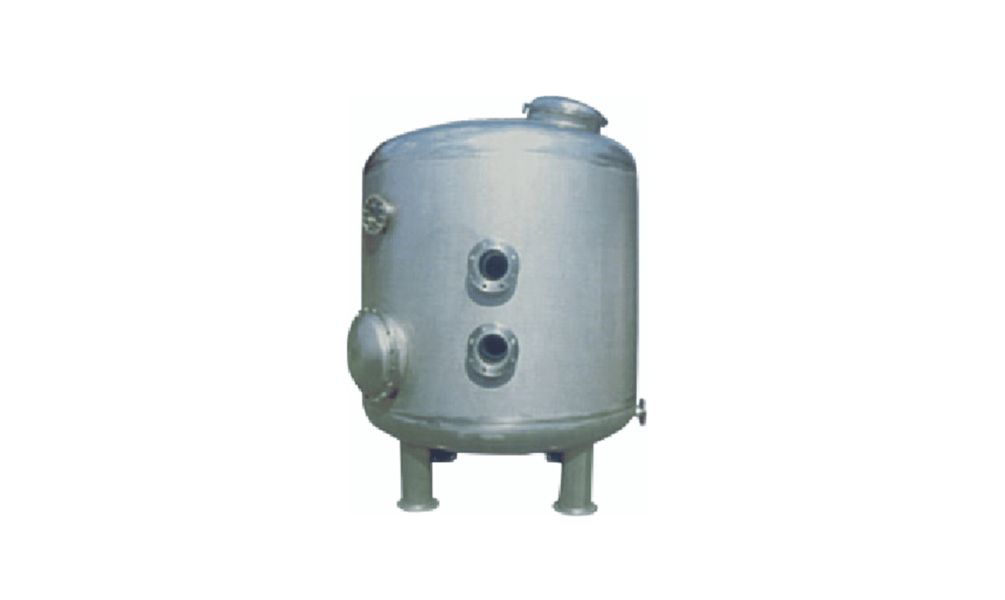

A stainless steel sand filter with nozzle plate internal water distribution and a filtration bed height of 1250mm

• Manufactured in stainless steel (AISI 304 V2A or AISI 316 L V4A)
  For 316, add -316 to the code
• External pickling to remove oxide scale, heat tint and
  to protect from corrosion
• Magnesium Anode protection
• Includes two hand holes for easy access
• Maximum operating pressure: 2.5 bar (Testing pressure: 4 bar)
• On-demand filter can be supplied with:
  -Working pressure: 4 bar (Test pressure: 6 bar)
  Add ‘-406’ to the code
  -Working pressure: 6 bar (Test pressure: 10 bar)
  Add ‘-0610’ to the code
  -Working pressure: 10 bar (Test pressure: 15 bar)
  Add ‘-1015’ to the code
• Warranty: 5 years on filter body
• Manifold and valves are not included
