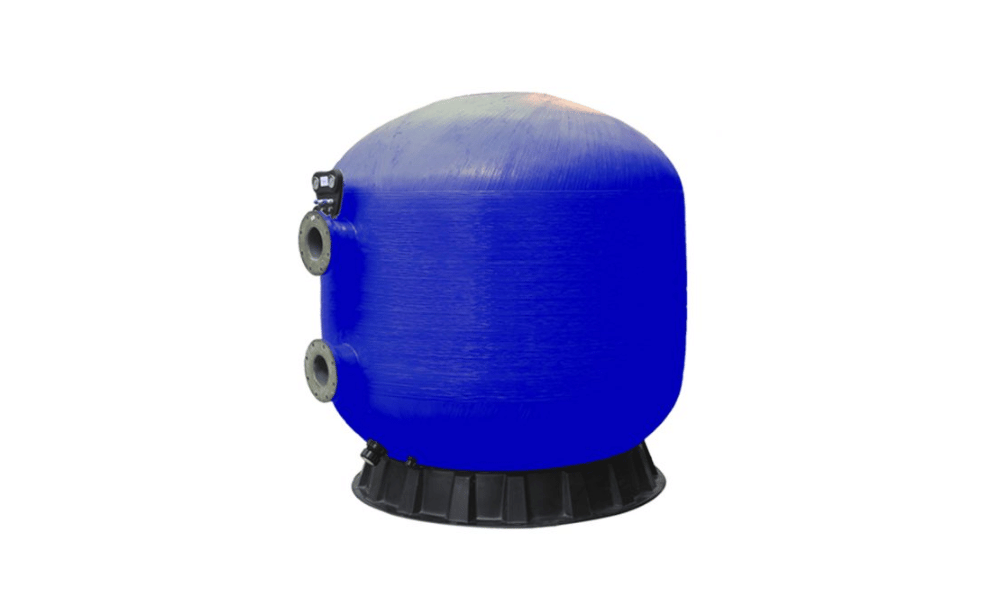

• Bobbin wound fiber glass reinforcement with polyester resin
• Mult-construcfion layers: non-corrosive and chemical protective
• UV resistance, suitable for operation under prolong sunlight
• Available in laterals or nozzles plate system for air scouring capabilities
• Optional accessories includes sight glass, manhole, and air purge
• Deign filtration velocity maximum: 50m3/h/m2
• Max operating pressure 2.5 / 4 bar, test pressure 4/6 bar
• Manifold & valves not included
• Warranty: 5 years
CODE DESCRIPTION
FB-1200-2.5-LAT BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 55M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 2.5KG/CM2
FB-1400-2.5-LAT BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 77M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 2.5KG/CM2
FB-1600-2.5-LAT BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 102M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 2.5KG/CM2
FB-1800-2.5-LAT BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 125M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 2.5KG/CM2
FB-2000-2.5-LAT BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 147M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 2.5KG/CM2
FB-2200-2.5-LAT BOBBINED FILTERS DIA.2200MM, FILTERATION RATE 190M3/H/M2 CONNECTION 200MM,WORK PRESSURE – 2.5KG/CM2
FB-2500-2.5-LAT BOBBINED FILTERS DIA.2500MM, FILTERATION RATE 240M3/H/M2 CONNECTION 225MM,WORK PRESSURE – 2.5KG/CM2
FB-1200-4-LAT BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 55M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 4KG/CM2
FB-1400-4-LAT BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 77M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 4KG/CM2
FB-1600-4-LAT BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 102M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 4KG/CM2
FB-1800-4-LAT BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 125M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 4KG/CM2
FB-2000-4-LAT BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 147M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 4KG/CM2
FB-2200-4-LAT BOBBINED FILTERS DIA.2200MM, FILTERATION RATE 190M3/H/M2 CONNECTION 200MM,WORK PRESSURE – 4KG/CM2
FB-2500-4-LAT BOBBINED FILTERS DIA.2500MM, FILTERATION RATE 240M3/H/M2 CONNECTION 225MM,WORK PRESSURE – 4KG/CM2
FB-1200-2.5-NOZ BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 55M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 2.5KG/CM2
FB-1400-2.5-NOZ BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 77M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 2.5KG/CM2
FB-1600-2.5-NOZ BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 102M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 2.5KG/CM2
FB-1800-2.5-NOZ BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 125M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 2.5KG/CM2
FB-2000-2.5-NOZ BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 147M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 2.5KG/CM2
FB-2200-2.5-NOZ BOBBINED FILTERS DIA.2200MM, FILTERATION RATE 190M3/H/M2 CONNECTION 200MM,WORK PRESSURE – 2.5KG/CM2
FB-2500-2.5-NOZ BOBBINED FILTERS DIA.2500MM, FILTERATION RATE 240M3/H/M2 CONNECTION 225MM,WORK PRESSURE – 2.5KG/CM2
FB-1200-4-NOZ BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 55M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 4KG/CM2
FB-1400-4-NOZ BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 77M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 4KG/CM2
FB-1600-4-NOZ BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 102M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 4KG/CM2
FB-1800-4-NOZ BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 125M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 4KG/CM2
FB-2000-4-NOZ BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 147M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 4KG/CM2
FB-2200-4-NOZ BOBBINED FILTERS DIA.2200MM, FILTERATION RATE 190M3/H/M2 CONNECTION 200MM,WORK PRESSURE – 4KG/CM2
FB-2500-4-NOZ BOBBINED FILTERS DIA.2500MM, FILTERATION RATE 240M3/H/M2 CONNECTION 225MM,WORK PRESSURE – 4KG/CM2
FBH-1200-2.5-LAT BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 45M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 2.5KG/CM2
FBH-1400-2.5-LAT BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 61M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 2.5KG/CM2
FBH-1600-2.5-LAT BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 80M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 2.5KG/CM2
FBH-1800-2.5-LAT BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 101M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 2.5KG/CM2
FBH-2000-2.5-LAT BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 125M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 2.5KG/CM2
FBH-2300-2.5-LAT BOBBINED FILTERS DIA.2200MM, FILTERATION RATE 175M3/H/M2 CONNECTION 200MM,WORK PRESSURE – 2.5KG/CM2
FBH-2500-2.5-LAT BOBBINED FILTERS DIA.2500MM, FILTERATION RATE 2000M3/H/M2 CONNECTION 225MM,WORK PRESSURE – 2.5KG/CM2
FBH-1200-4-LAT BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 45M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 4KG/CM2
FBH-1400-4-LAT BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 61M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 4KG/CM2
FBH-1600-4-LAT BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 80M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 4KG/CM2
FBH-1800-4-LAT BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 101M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 4KG/CM2?
FBH-2000-4-LAT BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 125M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 4KG/CM2
FBH-2300-4-LAT BOBBINED FILTERS DIA.2200MM, FILTERATION RATE 175M3/H/M2 CONNECTION 200MM,WORK PRESSURE – 4KG/CM2
FBH-2500-4-LAT BOBBINED FILTERS DIA.2500MM, FILTERATION RATE 200M3/H/M2 CONNECTION 225MM,WORK PRESSURE – 4KG/CM
FBH-1200-2.5-NOZ BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 45M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 2.5KG/CM2
FBH-1400-2.5-NOZ BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 61M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 2.5KG/CM2
FBH-1600-2.5-NOZ BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 80M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 2.5KG/CM2
FBH-1800-2.5-NOZ BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 101M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 2.5KG/CM2
FBH-2000-2.5-NOZ BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 125M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 2.5KG/CM2
FBH-2300-2.5-NOZ BOBBINED FILTERS DIA.2200MM, FILTERATION RATE 175M3/H/M2 CONNECTION 200MM,WORK PRESSURE – 2.5KG/CM2
FBH-2500-2.5-NOZ BOBBINED FILTERS DIA.2500MM, FILTERATION RATE 2000M3/H/M2 CONNECTION 225MM,WORK PRESSURE – 2.5KG/CM2
FBH-1200-4-NOZ BOBBINED FILTERS DIA.1200MM, FILTERATION RATE 45M3/H/M2 CONNECTION 90MM,WORK PRESSURE – 4KG/CM2
FBH-1400-4-NOZ BOBBINED FILTERS DIA.1400MM, FILTERATION RATE 61M3/H/M2 CONNECTION 100MM,WORK PRESSURE – 4KG/CM2
FBH-1600-4-NOZ BOBBINED FILTERS DIA.1600MM, FILTERATION RATE 80M3/H/M2 CONNECTION 125MM,WORK PRESSURE – 4KG/CM2
FBH-1800-4-NOZ BOBBINED FILTERS DIA.1800MM, FILTERATION RATE 101M3/H/M2 CONNECTION 140MM,WORK PRESSURE – 4KG/CM2
FBH-2000-4-NOZ BOBBINED FILTERS DIA.2000MM, FILTERATION RATE 125M3/H/M2 CONNECTION 160MM,WORK PRESSURE – 4KG/CM2
FBH-2300-4-NOZ
