Description

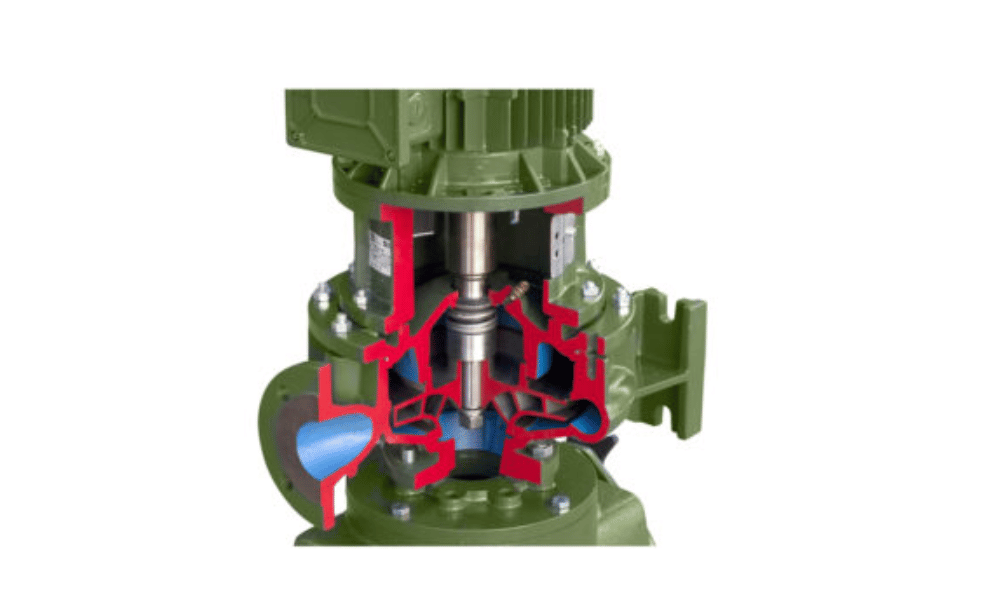

Manufactured in cast iron, this high flow, centrifugal pump has been designed for large filtration systems in commercial swimming pools. For easy maintenance, this pump incorporates a standard 2 pole motor, making repair or replacement very easy without any disruption to the valves or hydraulic system.

Technical features

• Cast iron pump body, pre-filter chamber and coupling
• Large pre-filter basket made in AISI 316 Stainless steel
• Mechanical seal in carbon ceramic (Silicon carbide or tungsten carbon available on request)
• Cast iron impeller as standard (Bronze impeller available on request)
• Flange connection from DN-80 to DN-125
• Stainless steel AISA 316 shaft and screws
• Standard asynchronous, 2 pole motor, sealed from external ventilation
• Lubricated bearings to ensure long life and quiet operation
• Ideal for high height filtration systems (Vert HF-2 models only)
• Power supply: 230/400V 50Hz and 60Hz on demand
• IE3 standardised motor: 2900 RPM at 50Hz (3450 RPM at 60Hz)
• Protection rating: IP55
• Insulation rating: Class F
